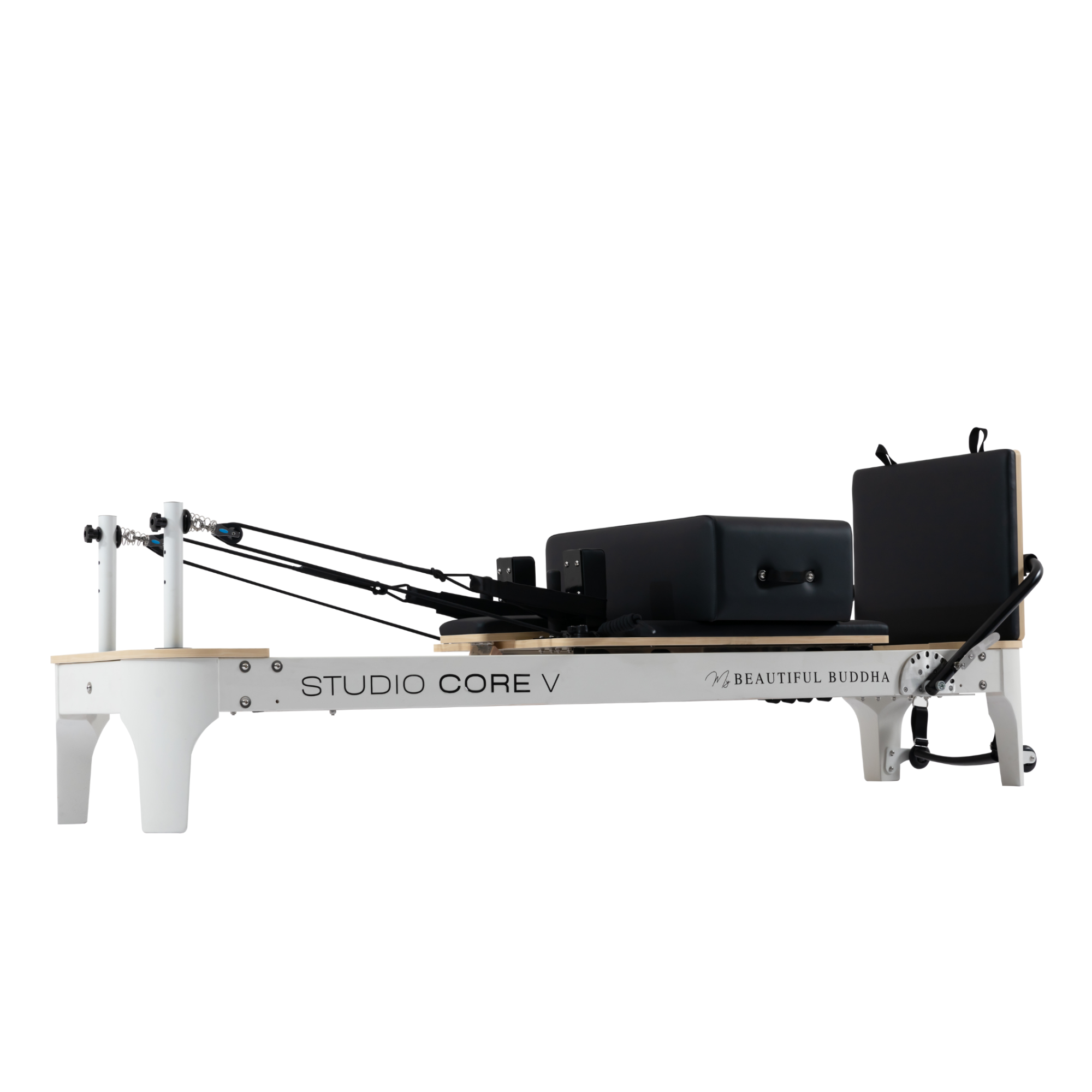

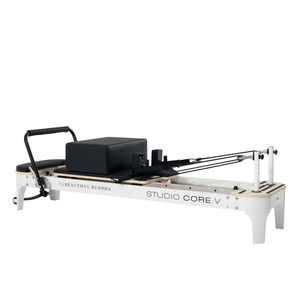

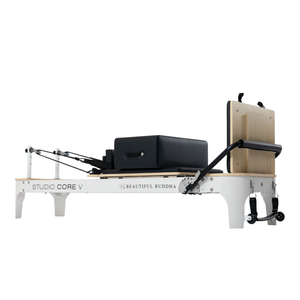

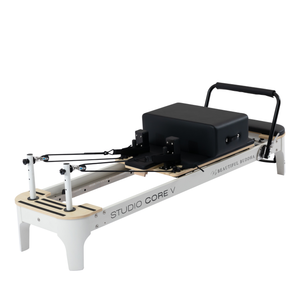

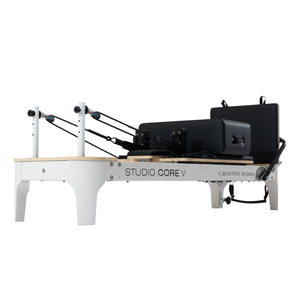

STUDIO CORE V ALPINE Edition - Commercial Pilates Reformer - Full Set Up
The Studio Core V Alpine Edition is a commercial-grade Pilates reformer in matte white with birch detailing, built for daily studio use and designed to suit bright, modern interiors in boutique studios and dedicated home spaces.

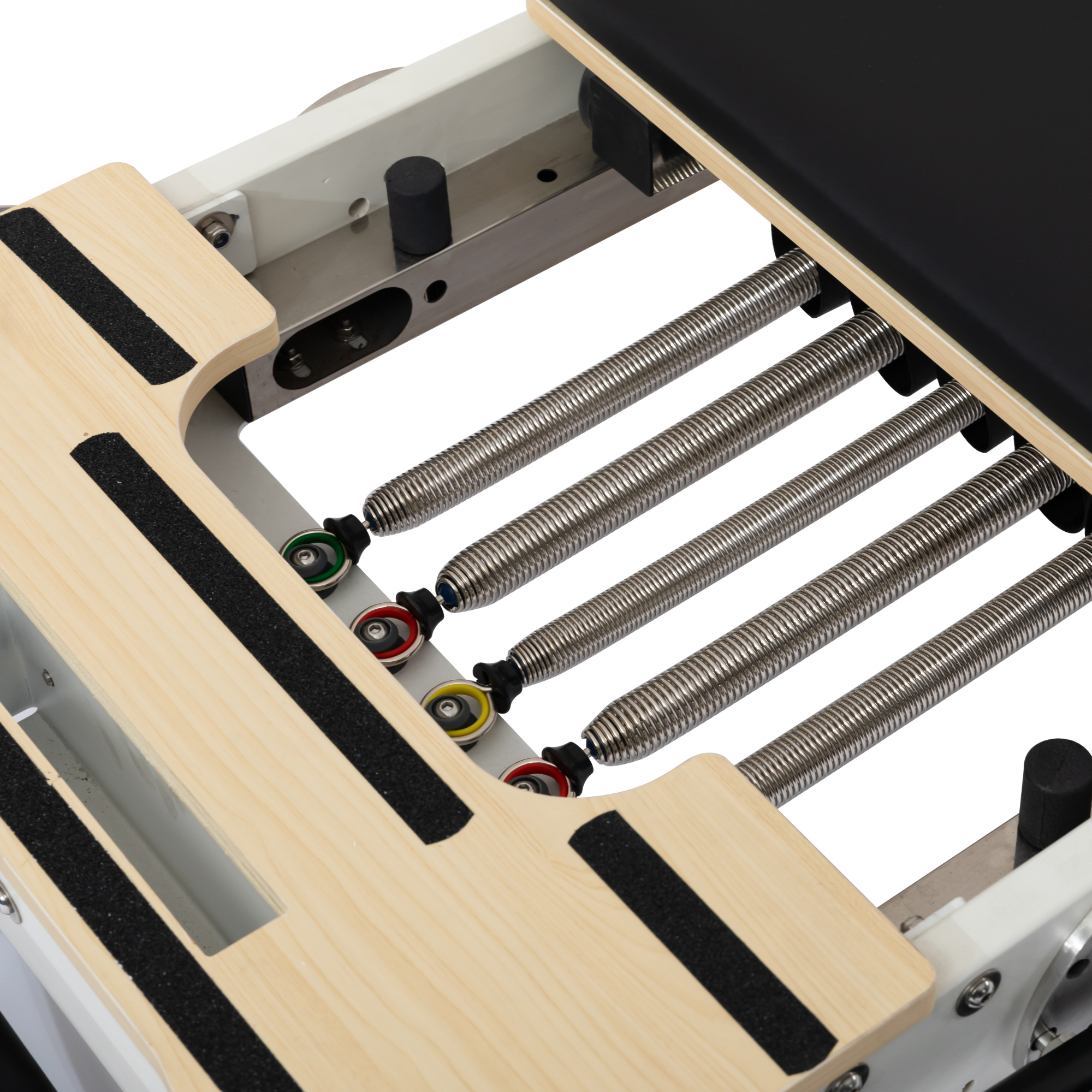

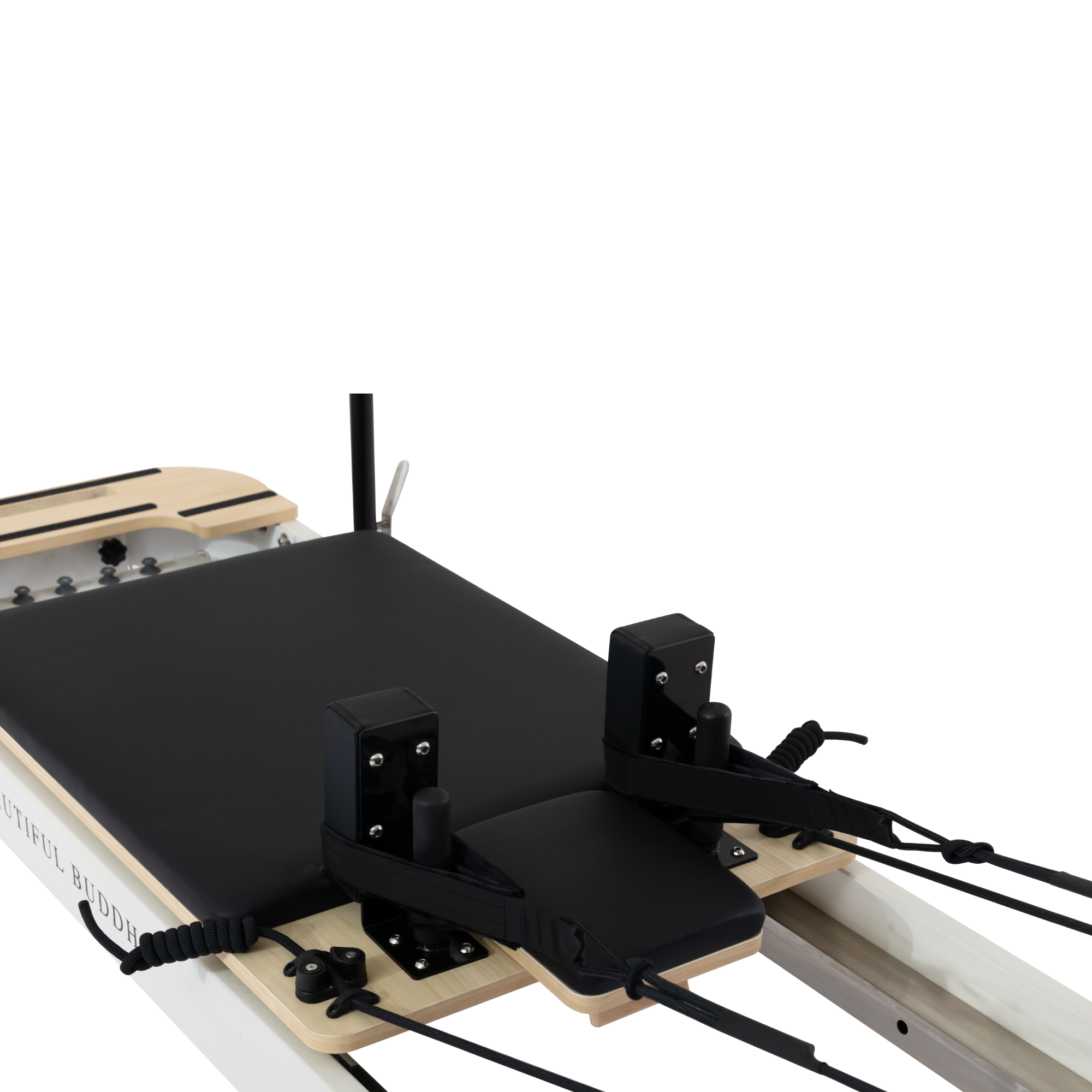

The powder-coated aluminium frame carries a full-length carriage on a precision track-lever glide system for a smooth, near-silent ride. Resistance comes from 5 colour-coded springs made from SWP-B grade piano wire with nickel plating: 2 red (heavy), 2 green (medium) and 1 yellow (light), giving up to 89kg combined. They attach to a dual-row hook system for fine-tuned combinations. The carriage is upholstered in superfine vegan leather over high-density foam, with ergonomic shoulder rests and a multi-position padded headrest.

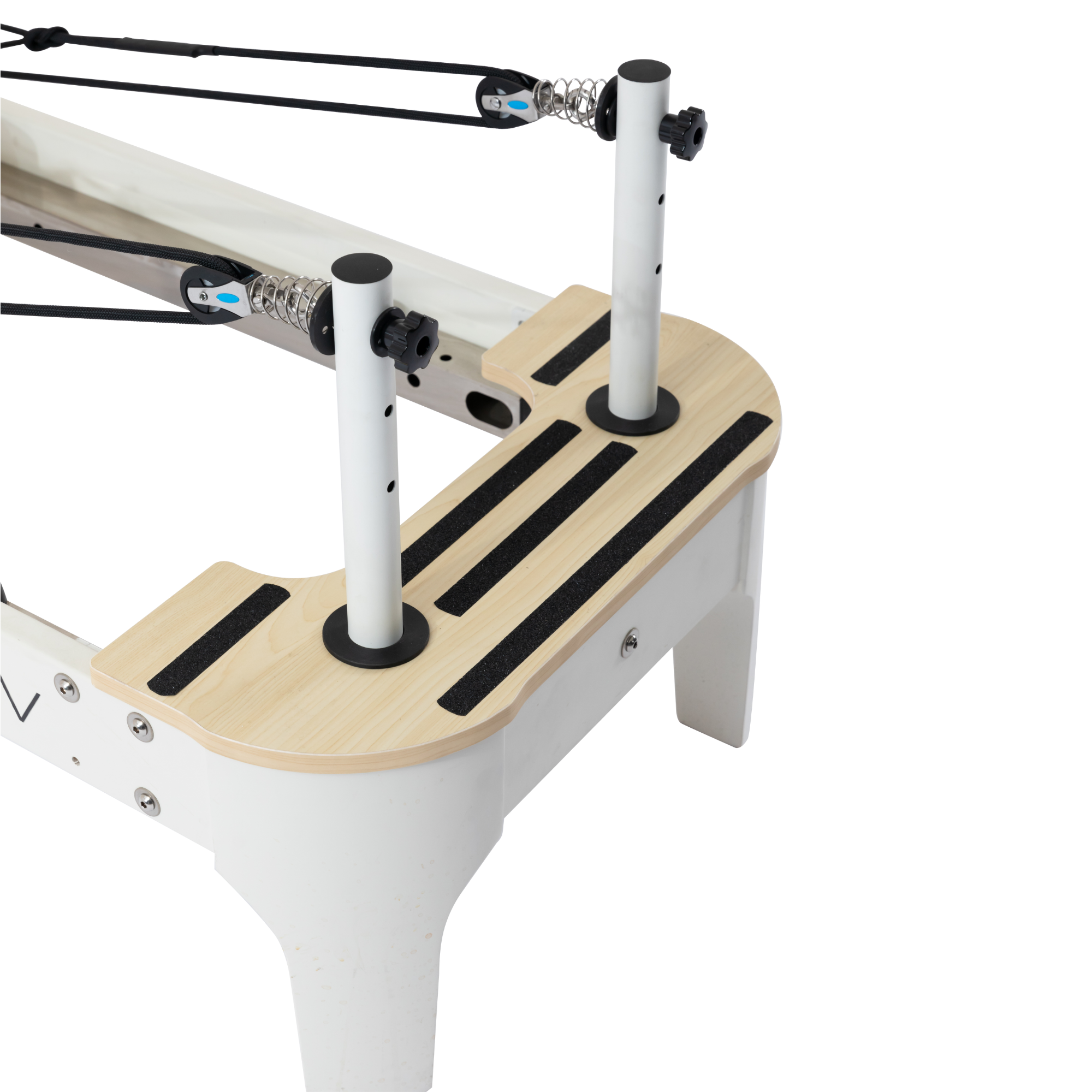

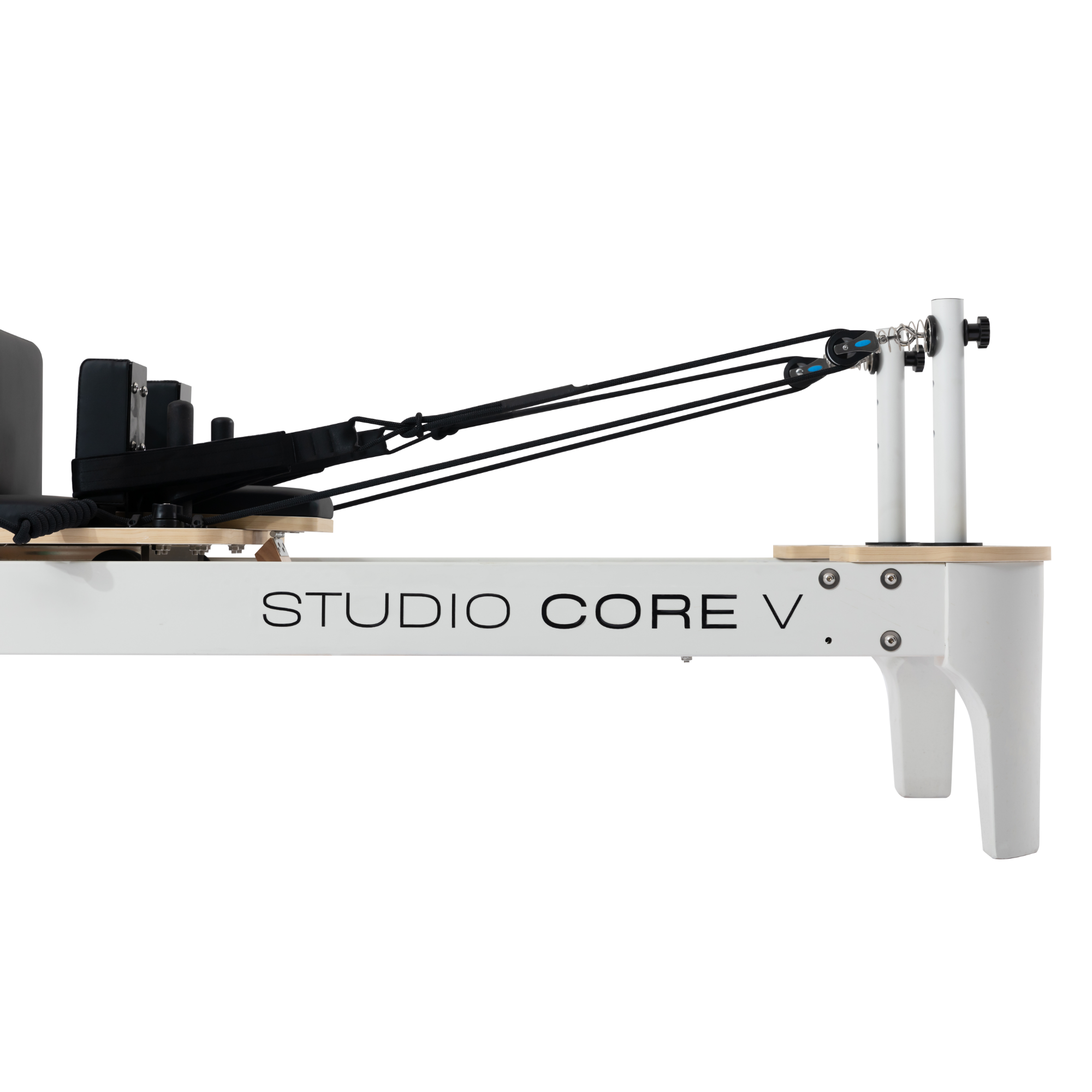

At the foot of the frame, dual height-adjustable pulley risers set rope angles for upper-body work, and the padded footbar locks at multiple angles. A birch foot platform with anti-slip grip strips supports standing, kneeling and footwork exercises, and a sitting box and jump board are included. Integrated transport wheels make repositioning easy. Plan for about 3.4m × 1.7m of floor space.
Please Note: This item is heavy (98kg). We recommend having assistance and proper equipment available when receiving it.
Key Features:
Colour: Matte white frame with birch accents
Material: Powder-coated aluminium frame, birch wood platforms, superfine vegan leather upholstery, high-density foam
Resistance System: 5 colour-coded springs (SWP-B piano wire, nickel-plated): 2 × Red (Heavy, 28kg, Ø2.8mm), 2 × Green (Medium, 12kg, Ø2.3mm), 1 × Yellow (Light, 9kg, Ø2.0mm)
Spring Testing: Reformer springs independently fatigue-tested to 743,682 cycles with no loosening or deformation
Product Dimensions (Assembled): 240cm (L) × 68cm (W) × 40cm (H)
Net Weight: 98kg
Maximum User Weight: 140kg
What’s in the box:
1 × Studio Core V Alpine reformer frame
1 × Glide carriage with vegan leather upholstery
5 × Colour-coded springs (2 red, 2 green, 1 yellow)
2 × Height-adjustable pulley risers with ropes and handles
1 × Padded adjustable footbar
2 × Ergonomic shoulder rests
1 × Multi-position padded headrest
1 × Foot platform with anti-slip grip strips
1 × Sitting box
1 × Jump board
2 × Transport wheels (pre-installed)
